TLP104(V4,E

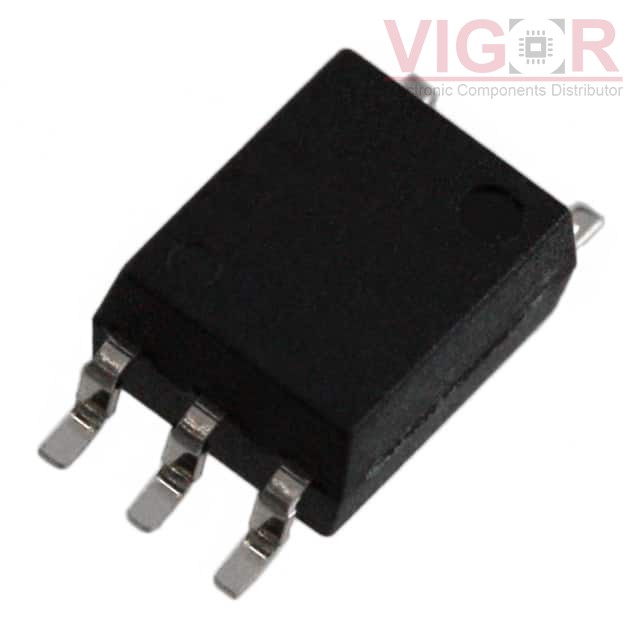

Image is for reference,
please contact us to get the real picture

Part No :: TLP104(V4,E

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: OPTOISO 3.75KV OPEN COLL SO6

Catalog: Optoisolators - Logic Output

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: TLP104(V4,E PDF

Availability: 119 pieces

Unit Price: ~~$1.81000~~

Current price of TLP104(V4,E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP104(V4,E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	15kV/µs
Input Type:	DC
Output Type:	Open Collector
Current - Output / Channel:	8 mA
Data Rate:	1Mbps
Propagation Delay tpLH / tpHL (Max):	550ns, 400ns
Rise / Fall Time (Typ):	-
Voltage - Forward (Vf) (Typ):	1.61V
Current - DC Forward (If) (Max):	25mA
Voltage - Supply:	4.5V ~ 30V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package:	6-SO, 5 Lead

Please confirm the specifications of the products when ordering.
