ACPL-2672L

ACPL-2672L

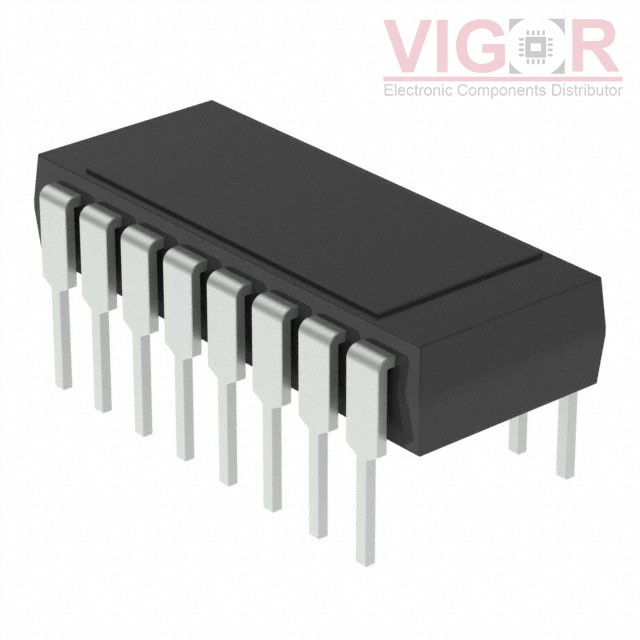

Image is for reference,
please contact us to get the real picture

Part No :

ACPL-2672L

Manufacturer
Broadcom
Description
OPTOISO 1.5KV 2CH OPEN COL 16DIP
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
ACPL-2672L PDF
Availability
0 pieces
Unit Price
$96.99658

Current price of ACPL-2672L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACPL-2672L Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:1500VDC
Common Mode Transient Immunity (Min):1kV/µs
Input Type:DC
Output Type:Open Collector, Schottky Clamped
Current - Output / Channel:25 mA
Data Rate:10MBd
Propagation Delay tpLH / tpHL (Max):100ns, 100ns
Rise / Fall Time (Typ):20ns, 8ns
Voltage - Forward (Vf) (Typ):1.55V
Current - DC Forward (If) (Max):20mA
Voltage - Supply:3V ~ 3.6V
Operating Temperature:-55°C ~ 125°C
Mounting Type:Through Hole
Package / Case:16-CDIP (0.300", 7.62mm)
Supplier Device Package:16-CDIP
