FOD8160R2

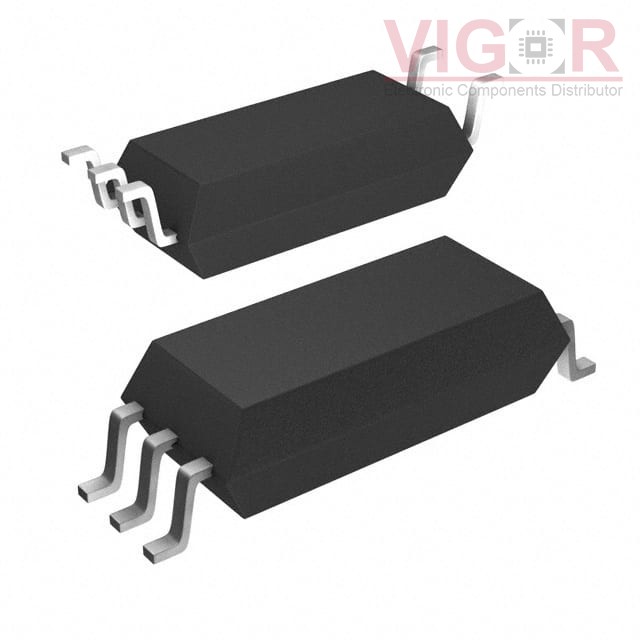

Image is for reference,
please contact us to get the real picture

Part No :: FOD8160R2

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: OPTOISO 5KV OPEN COLLECTOR 5SOP

Catalog: Optoisolators - Logic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: FOD8160R2 PDF

Availability: 0 pieces

Unit Price: ~~$1.42835~~

Current price of FOD8160R2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FOD8160R2 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	20kV/µs
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	50 mA
Data Rate:	10Mbps
Propagation Delay tpLH / tpHL (Max):	90ns, 80ns
Rise / Fall Time (Typ):	22ns, 9ns
Voltage - Forward (Vf) (Typ):	1.45V
Current - DC Forward (If) (Max):	25mA
Voltage - Supply:	3V ~ 5.5V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.362", 9.20mm Width), 5 Leads
Supplier Device Package:	5-SOP

Please confirm the specifications of the products when ordering.
