H11L1M

H11L1M

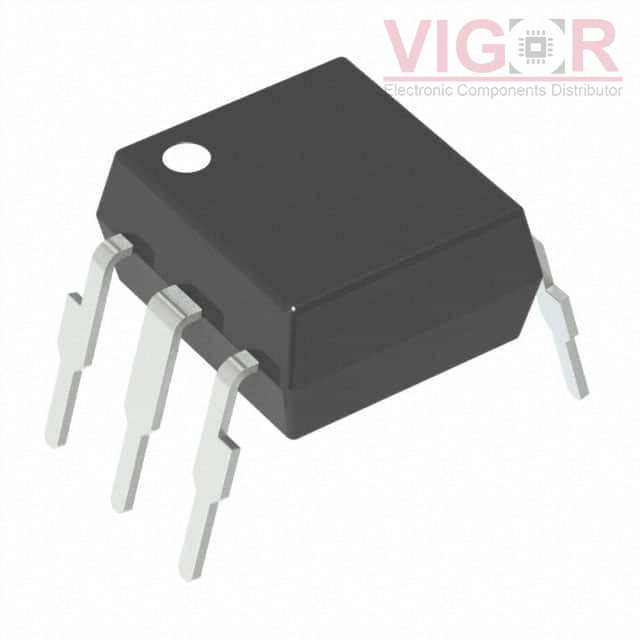

Image is for reference,
please contact us to get the real picture

Part No :

H11L1M

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
OPTOISO 4.17KV OPN COLL 6DIP
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
H11L1M PDF
Availability
1731 pieces
Unit Price
$0.98000

Current price of H11L1M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H11L1M Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:4170Vrms
Common Mode Transient Immunity (Min):-
Input Type:DC
Output Type:Open Collector
Current - Output / Channel:50 mA
Data Rate:1MHz
Propagation Delay tpLH / tpHL (Max):4µs, 4µs
Rise / Fall Time (Typ):100ns, 100ns
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):30mA
Voltage - Supply:3V ~ 15V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Through Hole
Package / Case:6-DIP (0.300", 7.62mm)
Supplier Device Package:6-DIP
