HCPL-2300-300E

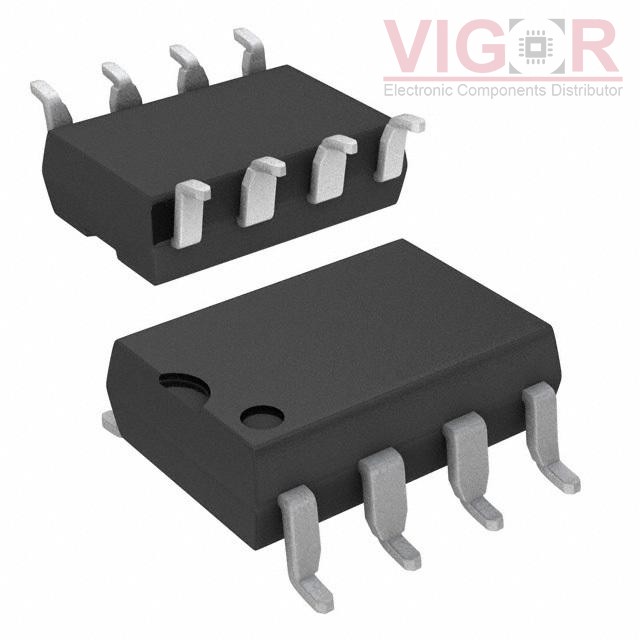

Image is for reference,
please contact us to get the real picture

Part No :: HCPL-2300-300E

Manufacturer: Broadcom

Description: OPTOISO 3.75KV OPEN COLL 8DIP GW

Catalog: Optoisolators - Logic Output

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: HCPL-2300-300E PDF

Availability: 1242 pieces

Unit Price: ~~$6.67000~~

Current price of HCPL-2300-300E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL-2300-300E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	100V/µs
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	25 mA
Data Rate:	5MBd
Propagation Delay tpLH / tpHL (Max):	160ns, 200ns
Rise / Fall Time (Typ):	40ns, 20ns
Voltage - Forward (Vf) (Typ):	1.3V
Current - DC Forward (If) (Max):	5mA (Typ)
Voltage - Supply:	4.75V ~ 5.25V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	8-SMD, Gull Wing
Supplier Device Package:	8-DIP Gull Wing
