H11L1M-V

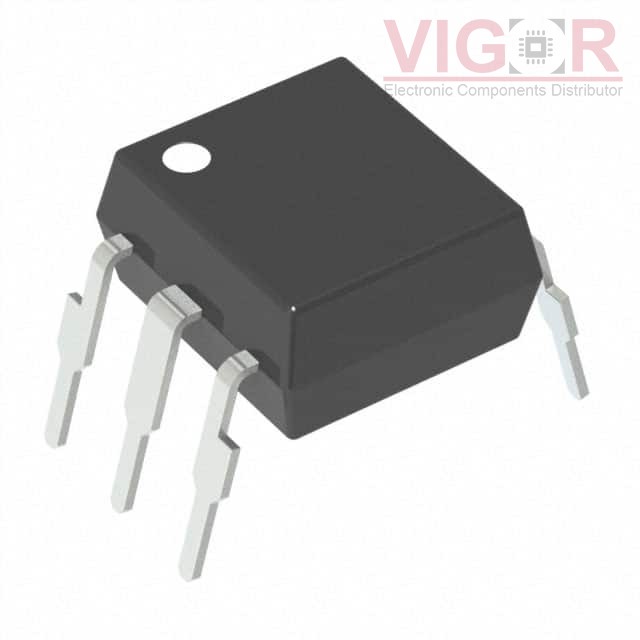

Image is for reference,
please contact us to get the real picture

Part No :: H11L1M-V

Manufacturer: Everlight Electronics

Description: OPTOISO 5KV OPEN COLLECTOR 6DIP

Catalog: Optoisolators - Logic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 13 - Jul 17 2025

DataSheet: H11L1M-V PDF

Availability: 0 pieces

Unit Price: ~~$0.38667~~

Current price of H11L1M-V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H11L1M-V Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	-
Input Type:	DC
Output Type:	Open Collector
Current - Output / Channel:	50 mA
Data Rate:	1MHz
Propagation Delay tpLH / tpHL (Max):	4µs, 4µs
Rise / Fall Time (Typ):	100ns, 100ns
Voltage - Forward (Vf) (Typ):	1.15V
Current - DC Forward (If) (Max):	60mA
Voltage - Supply:	3V ~ 16V
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	6-DIP (0.400", 10.16mm)
Supplier Device Package:	6-DIP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
