HCPL-6431

HCPL-6431

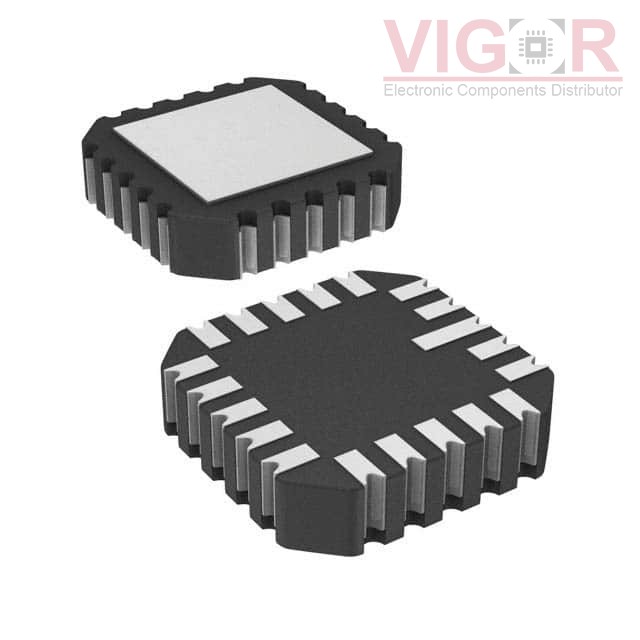

Image is for reference,
please contact us to get the real picture

Part No :

HCPL-6431

Manufacturer
Broadcom
Description
OPTOISO 1.5KV PUSH PULL 20LCCC
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
HCPL-6431 PDF
Availability
0 pieces
Unit Price
$147.75739

Current price of HCPL-6431 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL-6431 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:1500VDC
Common Mode Transient Immunity (Min):500V/µs
Input Type:DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:25 mA
Data Rate:40Mbps
Propagation Delay tpLH / tpHL (Max):60ns, 60ns
Rise / Fall Time (Typ):15ns, 10ns
Voltage - Forward (Vf) (Typ):1.35V
Current - DC Forward (If) (Max):10mA
Voltage - Supply:4.75V ~ 5.25V
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:20-CLCC
Supplier Device Package:20-LCCC (8.89x8.89)
