6N137TSR2VM

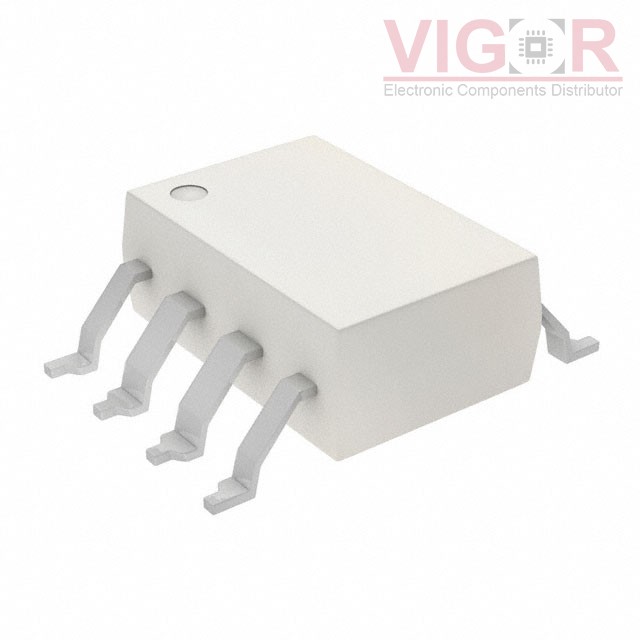

Image is for reference,
please contact us to get the real picture

Part No :: 6N137TSR2VM

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: OPTOISO 5KV 1CH OPEN COLL 8SMD

Catalog: Optoisolators - Logic Output

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: 6N137TSR2VM PDF

Availability: 62 pieces

Unit Price: ~~$2.35000~~

Current price of 6N137TSR2VM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

6N137TSR2VM Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	10kV/µs (Typ)
Input Type:	DC
Output Type:	Open Collector
Current - Output / Channel:	50 mA
Data Rate:	10Mbps
Propagation Delay tpLH / tpHL (Max):	75ns, 75ns
Rise / Fall Time (Typ):	30ns, 10ns
Voltage - Forward (Vf) (Typ):	1.45V
Current - DC Forward (If) (Max):	50mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	8-SMD, Gull Wing
Supplier Device Package:	8-SMD

Please confirm the specifications of the products when ordering.
