HCPL-M601-560E

HCPL-M601-560E

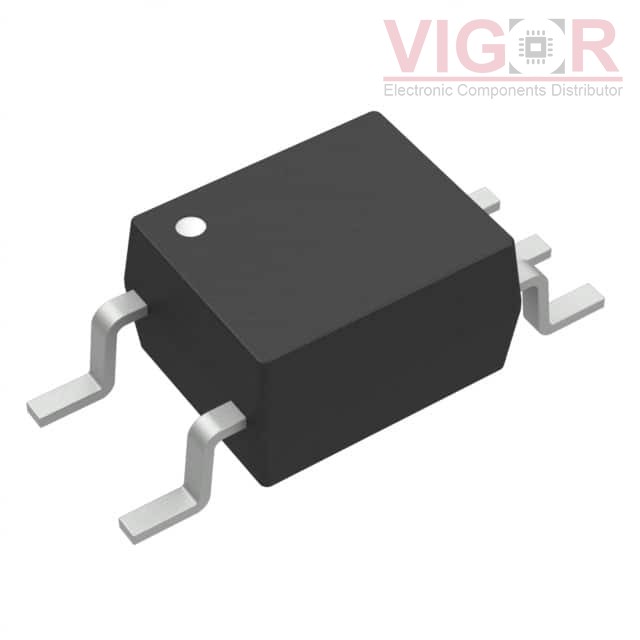

Image is for reference,
please contact us to get the real picture

Part No :

HCPL-M601-560E

Manufacturer
Broadcom
Description
OPTOISO 3.75KV OPN COLLECTOR 5SO
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
HCPL-M601-560E PDF
Availability
0 pieces
Unit Price
$1.25260

Current price of HCPL-M601-560E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL-M601-560E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):5kV/µs
Input Type:DC
Output Type:Open Collector, Schottky Clamped
Current - Output / Channel:50 mA
Data Rate:10MBd
Propagation Delay tpLH / tpHL (Max):75ns, 75ns
Rise / Fall Time (Typ):24ns, 10ns
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):20mA
Voltage - Supply:4.5V ~ 5.5V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package:5-SO
