HCPL-060L-560

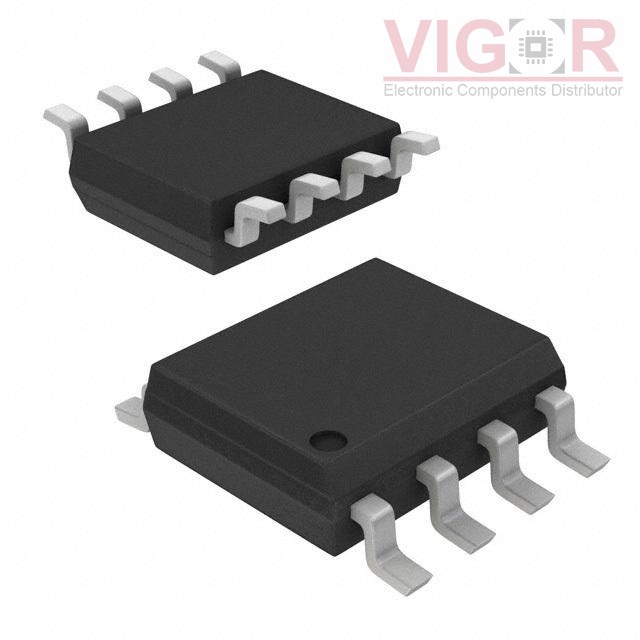

Image is for reference,
please contact us to get the real picture

Part No :: HCPL-060L-560

Manufacturer: Broadcom

Description: OPTOISO 3.75KV OPN COLLECTOR 8SO

Catalog: Optoisolators - Logic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: HCPL-060L-560 PDF

Availability: 0 pieces

Unit Price: ~~$1.45962~~

Current price of HCPL-060L-560 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL-060L-560 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	10kV/µs
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	50 mA
Data Rate:	15MBd
Propagation Delay tpLH / tpHL (Max):	75ns, 75ns
Rise / Fall Time (Typ):	24ns, 10ns
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	2.7V ~ 3.6V, 4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SO Tall
