TLP2166A(TP,F)

TLP2166A(TP,F)

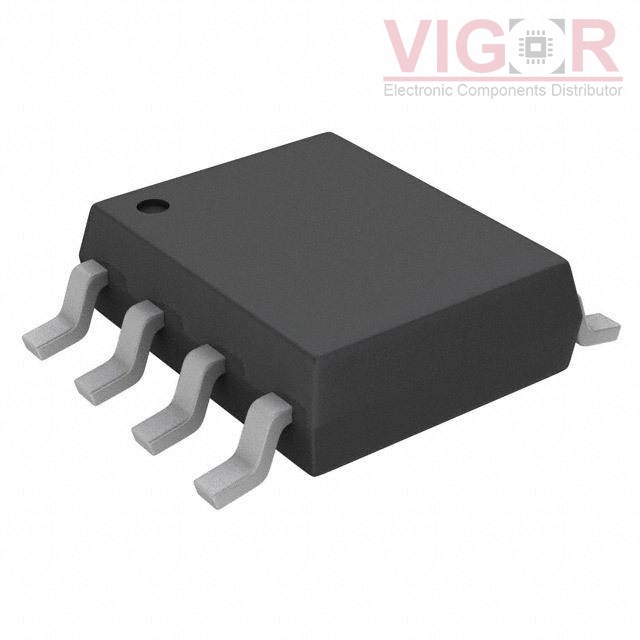

Image is for reference,
please contact us to get the real picture

Part No :

TLP2166A(TP,F)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
OPTOISO 2.5KV 2CH PUSH PULL 8SO
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
TLP2166A(TP,F) PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TLP2166A(TP,F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP2166A(TP,F) Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):15kV/µs
Input Type:DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:10 mA
Data Rate:15MBd
Propagation Delay tpLH / tpHL (Max):75ns, 75ns
Rise / Fall Time (Typ):5ns, 5ns
Voltage - Forward (Vf) (Typ):1.65V
Current - DC Forward (If) (Max):15mA
Voltage - Supply:3V ~ 3.63V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SO
