SFH6702-X006

SFH6702-X006

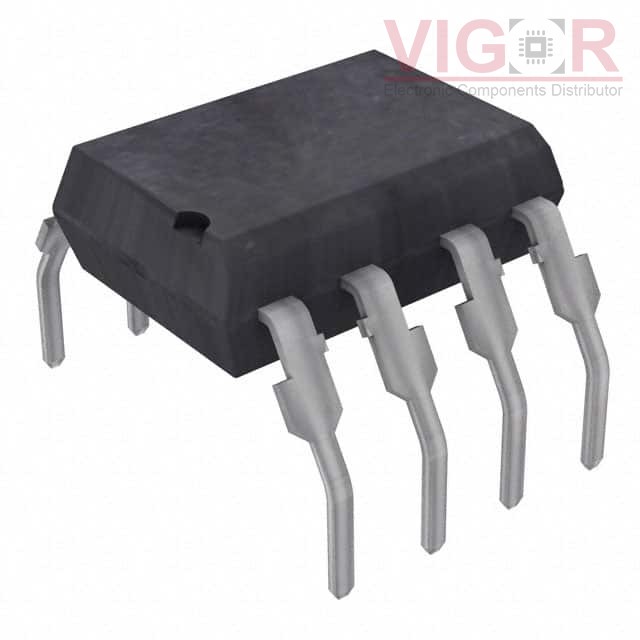

Image is for reference,
please contact us to get the real picture

Part No :

SFH6702-X006

Manufacturer
Vishay / Semiconductor - Opto Division
Description
OPTOISO 5.3KV PUSH PULL 8DIP
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
SFH6702-X006 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of SFH6702-X006 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SFH6702-X006 Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:5300Vrms
Common Mode Transient Immunity (Min):1kV/µs
Input Type:DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:25 mA
Data Rate:5MBd
Propagation Delay tpLH / tpHL (Max):300ns, 300ns
Rise / Fall Time (Typ):40ns, 10ns
Voltage - Forward (Vf) (Typ):1.6V
Current - DC Forward (If) (Max):10mA
Voltage - Supply:4.5V ~ 15V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.400", 10.16mm)
Supplier Device Package:8-DIP
