TLP2161(F)

TLP2161(F)

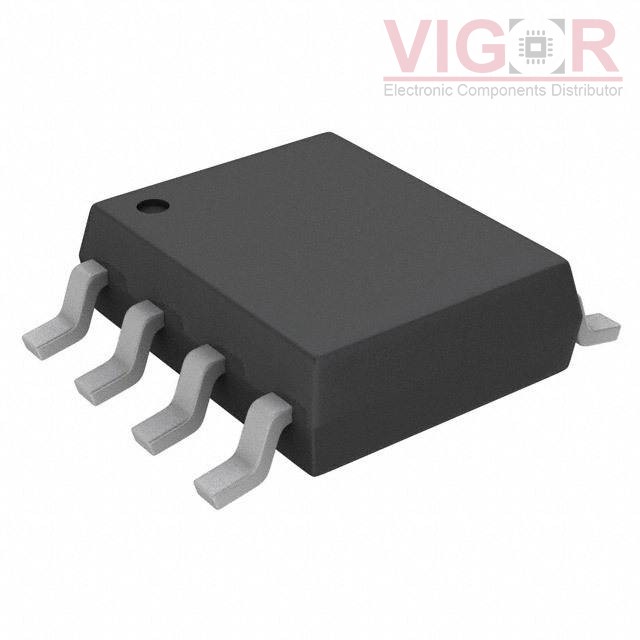

Image is for reference,
please contact us to get the real picture

Part No :

TLP2161(F)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
OPTOISO 2.5KV 2CH PUSH PULL 8SO
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 23 - Jul 27 2025
DataSheet
TLP2161(F) PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TLP2161(F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP2161(F) Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):20kV/µs
Input Type:DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:10 mA
Data Rate:15MBd
Propagation Delay tpLH / tpHL (Max):80ns, 80ns
Rise / Fall Time (Typ):3ns, 3ns
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):10mA
Voltage - Supply:2.7V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SO
