PS9303L-V E3-AX

PS9303L-V E3-AX

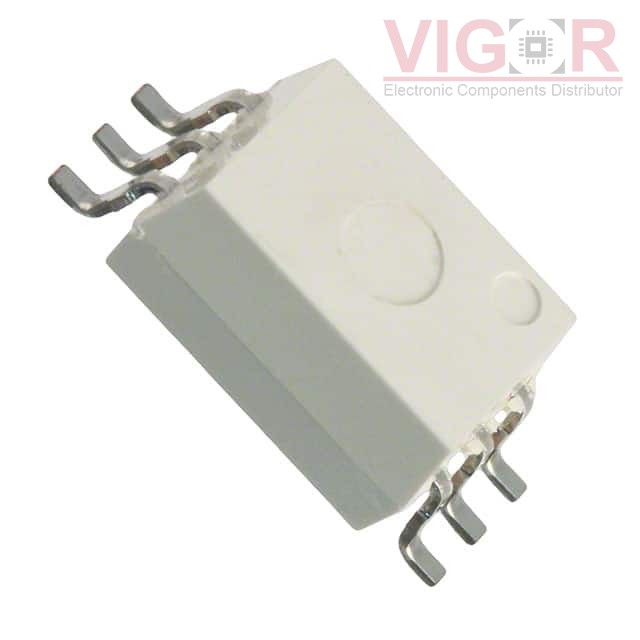

Image is for reference,
please contact us to get the real picture

Part No :

PS9303L-V E3-AX

Manufacturer
CEL (California Eastern Laboratories)
Description
OPTOISO 5KV PUSH PULL 6DIP GW
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
PS9303L-V E3-AX PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PS9303L-V E3-AX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PS9303L-V E3-AX Specifications
Type Description
Series:NEPOC
Package:Tape & Reel (TR)
Part Status:Discontinued at Digi-Key
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):15kV/µs
Input Type:DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:25 mA
Data Rate:1Mbps
Propagation Delay tpLH / tpHL (Max):500ns, 550ns
Rise / Fall Time (Typ):120ns, 90ns
Voltage - Forward (Vf) (Typ):1.6V
Current - DC Forward (If) (Max):20mA
Voltage - Supply:4.5V ~ 20V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:6-SDIP Gull Wing
