PS2561F-1Y-A

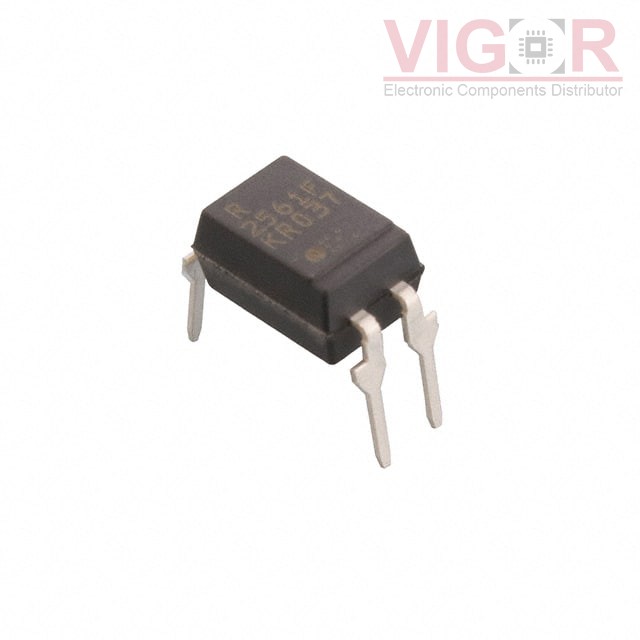

Image is for reference,
please contact us to get the real picture

Part No :: PS2561F-1Y-A

Manufacturer: Renesas Electronics America

Description: OPTOCOUPLER 4-PIN DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: PS2561F-1Y-A PDF

Availability: 0 pieces

Unit Price: ~~$0.94000~~

Current price of PS2561F-1Y-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PS2561F-1Y-A Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	300% @ 5mA
Current Transfer Ratio (Max):	600% @ 5mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	3µs, 7µs
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	80V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	30 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 110°C
Mounting Type:	Through Hole
Package / Case:	4-DIP (0.300", 7.62mm)
Supplier Device Package:	4-DIP

Please confirm the specifications of the products when ordering.
