ILD1206T

ILD1206T

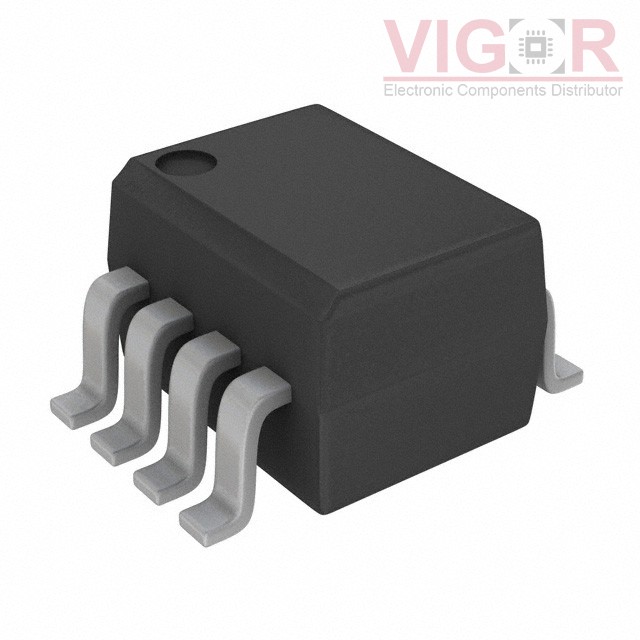

Image is for reference,
please contact us to get the real picture

Part No :

ILD1206T

Manufacturer
Vishay / Semiconductor - Opto Division
Description
OPTOISO 4KV 2CH TRANS 8SOIC
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
ILD1206T PDF
Availability
0 pieces
Unit Price
$0.55132

Current price of ILD1206T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ILD1206T Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:2
Voltage - Isolation:4000Vrms
Current Transfer Ratio (Min):63% @ 10mA
Current Transfer Ratio (Max):125% @ 10mA
Turn On / Turn Off Time (Typ):5µs, 4µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):70V
Current - Output / Channel:-
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):30 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 110°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SOIC
