SFH690ABT

SFH690ABT

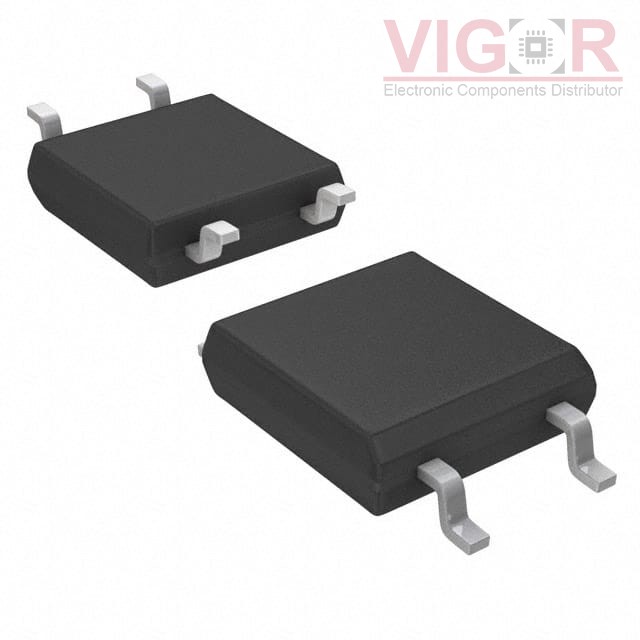

Image is for reference,
please contact us to get the real picture

Part No :

SFH690ABT

Manufacturer
Vishay / Semiconductor - Opto Division
Description
OPTOISOLATOR 3.75KV TRANS 4-SOP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
SFH690ABT PDF
Availability
4919 pieces
Unit Price
$0.61000

Current price of SFH690ABT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SFH690ABT Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):50% @ 5mA
Current Transfer Ratio (Max):300% @ 5mA
Turn On / Turn Off Time (Typ):5µs, 3µs
Rise / Fall Time (Typ):3µs, 4µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):70V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.15V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SOP (2.54mm)
