HCPL-4504

HCPL-4504

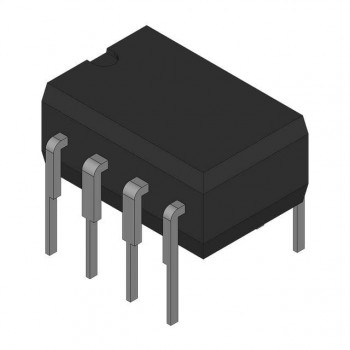

Image is for reference,
please contact us to get the real picture

Part No :

HCPL-4504

Manufacturer
Broadcom
Description
OPTOISOLATOR 3.75KV TRANS 8-DIP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
HCPL-4504 PDF
Availability
0 pieces
Unit Price
$1.47313

Current price of HCPL-4504 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL-4504 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):25% @ 16mA
Current Transfer Ratio (Max):60% @ 16mA
Turn On / Turn Off Time (Typ):200ns, 300ns
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):20V
Current - Output / Channel:8mA
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):25 mA
Vce Saturation (Max):-
Operating Temperature:-55°C ~ 100°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
