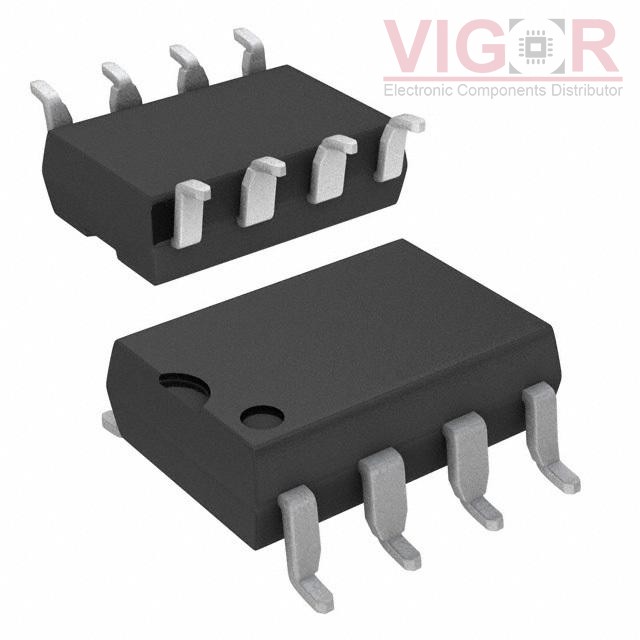

6N136-560E

6N136-560E

Image is for reference,
please contact us to get the real picture

Part No :

6N136-560E

Manufacturer
Broadcom
Description
OPTOISO 3.75KV TRANS W/BASE 8SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
6N136-560E PDF
Availability
0 pieces
Unit Price
$0.57876

Current price of 6N136-560E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

6N136-560E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):19% @ 16mA
Current Transfer Ratio (Max):50% @ 16mA
Turn On / Turn Off Time (Typ):200ns, 600ns
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):20V
Current - Output / Channel:8mA
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):25 mA
Vce Saturation (Max):-
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:8-SMD, Gull Wing
Supplier Device Package:8-SMD
