LTV-814HS

LTV-814HS

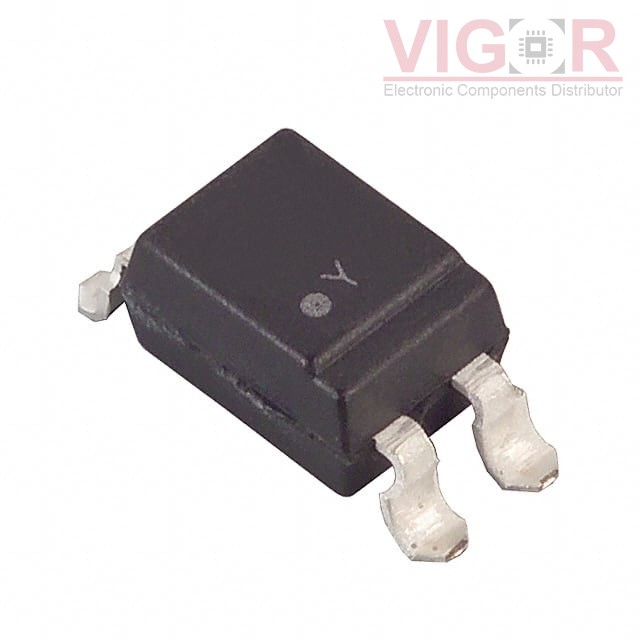

Image is for reference,
please contact us to get the real picture

Part No :

LTV-814HS

Manufacturer
Lite-On, Inc.
Description
OPTOISOLATR 5KV TRANSISTOR 4-SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
LTV-814HS PDF
Availability
8493 pieces
Unit Price
$0.51000

Current price of LTV-814HS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LTV-814HS Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):20% @ 100mA
Current Transfer Ratio (Max):80% @ 100mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 3µs
Input Type:AC, DC
Output Type:Transistor
Voltage - Output (Max):35V
Current - Output / Channel:80mA
Voltage - Forward (Vf) (Typ):1.4V
Current - DC Forward (If) (Max):150 mA
Vce Saturation (Max):200mV
Operating Temperature:-30°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SMD
