VOL618A-2T

VOL618A-2T

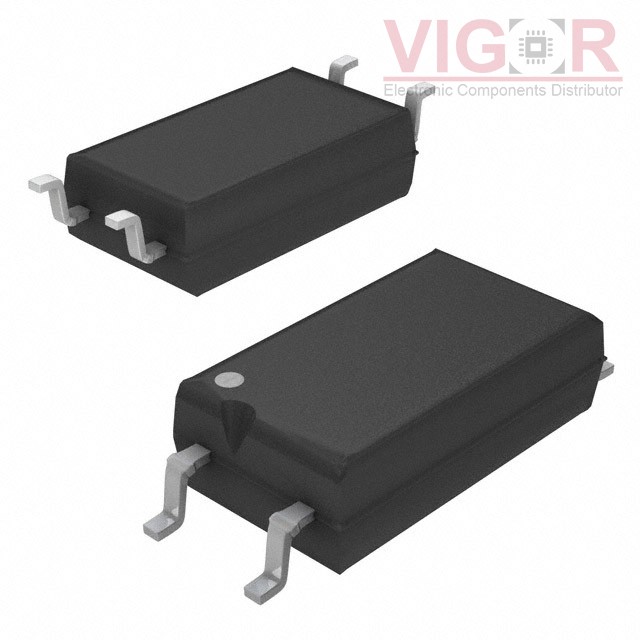

Image is for reference,
please contact us to get the real picture

Part No :

VOL618A-2T

Manufacturer
Vishay / Semiconductor - Opto Division
Description
OPTOISOLATOR 5KV TRANS 4-LSOP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
VOL618A-2T PDF
Availability
0 pieces
Unit Price
$0.20460

Current price of VOL618A-2T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VOL618A-2T Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):63% @ 1mA
Current Transfer Ratio (Max):125% @ 1mA
Turn On / Turn Off Time (Typ):6µs, 5.5µs
Rise / Fall Time (Typ):3.5µs, 5µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.16V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 110°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-LSOP (2.54mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TIL113S(TB)-V

TIL113S(TB)-V

OPTOISO 5KV DARL W/BASE 6SMD
HOT MOC8106SR2VM

MOC8106SR2VM

OPTOISOLATOR 4.17KV TRANS 6SMD

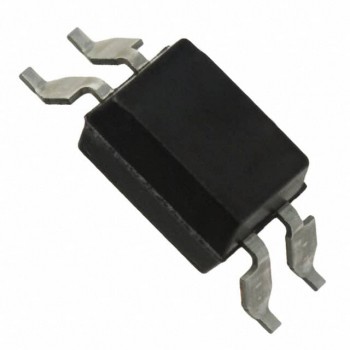

HOT PS2561AL2-1-V-E3-A
