TLP291-4(GB,E)

TLP291-4(GB,E)

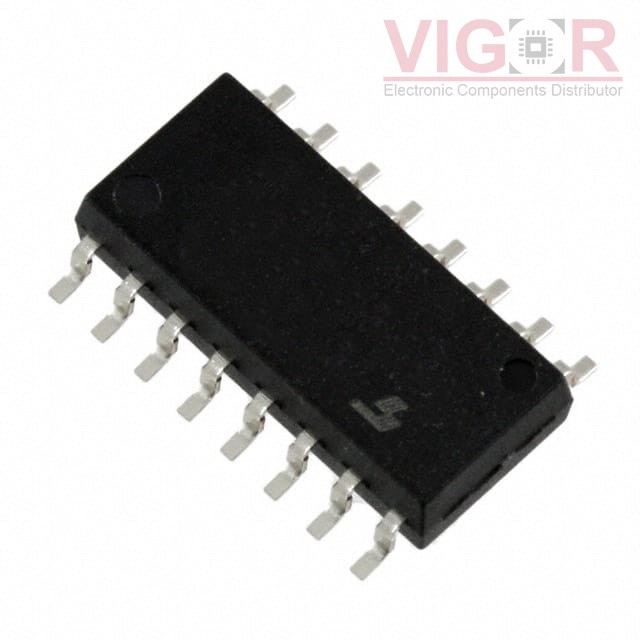

Image is for reference,
please contact us to get the real picture

Part No :

TLP291-4(GB,E)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
OPTOISOLTR 2.5KV 4CH TRANS 16-SO
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
TLP291-4(GB,E) PDF
Availability
13380 pieces
Unit Price
$1.09000

Current price of TLP291-4(GB,E) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP291-4(GB,E) Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:4
Voltage - Isolation:2500Vrms
Current Transfer Ratio (Min):100% @ 5mA
Current Transfer Ratio (Max):400% @ 5mA
Turn On / Turn Off Time (Typ):3µs, 3µs
Rise / Fall Time (Typ):2µs, 3µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 110°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.179", 4.55mm Width)
Supplier Device Package:16-SO
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

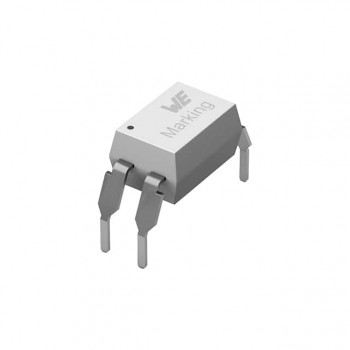

HOT 140817141410
