ACNU-250L-000E

ACNU-250L-000E

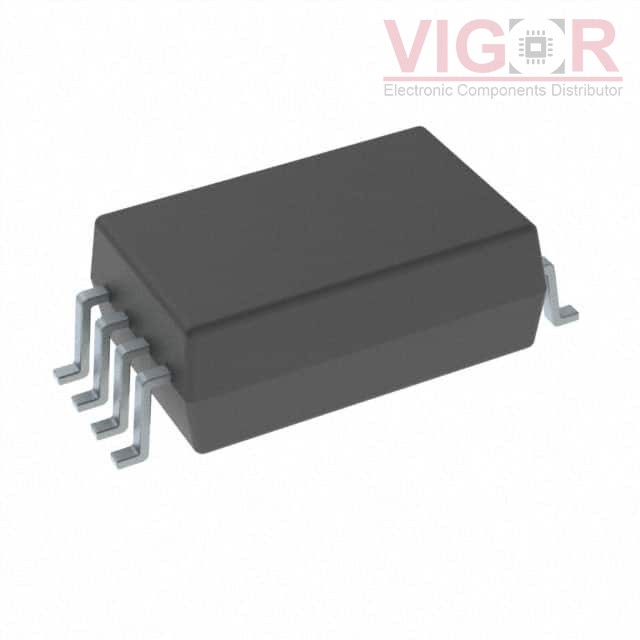

Image is for reference,
please contact us to get the real picture

Part No :

ACNU-250L-000E

Manufacturer
Broadcom
Description
11MM OPTOCOUPLER (1MBD)
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
ACNU-250L-000E PDF
Availability
2765 pieces
Unit Price
$4.09000

Current price of ACNU-250L-000E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACNU-250L-000E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):23% @ 12mA
Current Transfer Ratio (Max):53% @ 12mA
Turn On / Turn Off Time (Typ):0.3µs, 0.7µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):30V
Current - Output / Channel:12mA
Voltage - Forward (Vf) (Typ):0.8V
Current - DC Forward (If) (Max):18 mA
Vce Saturation (Max):-
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.378", 9.60mm Width)
Supplier Device Package:8-SO Stretched
