ACPL-824-W60E

ACPL-824-W60E

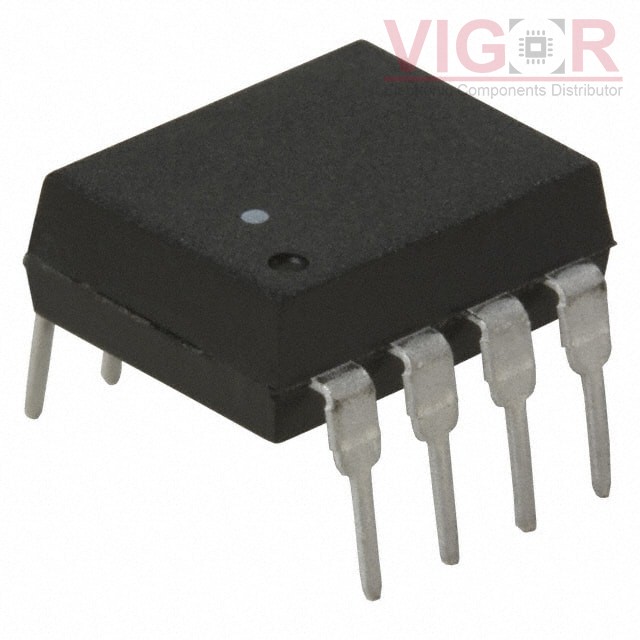

Image is for reference,
please contact us to get the real picture

Part No :

ACPL-824-W60E

Manufacturer
Broadcom
Description
OPTOISOLATOR 5KV 2CH TRANS 8DIP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
ACPL-824-W60E PDF
Availability
0 pieces
Unit Price
$0.39962

Current price of ACPL-824-W60E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACPL-824-W60E Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:2
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):20% @ 1mA
Current Transfer Ratio (Max):300% @ 1mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 3µs
Input Type:AC, DC
Output Type:Transistor
Voltage - Output (Max):70V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):200mV
Operating Temperature:-30°C ~ 100°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.400", 10.16mm)
Supplier Device Package:8-DIP
