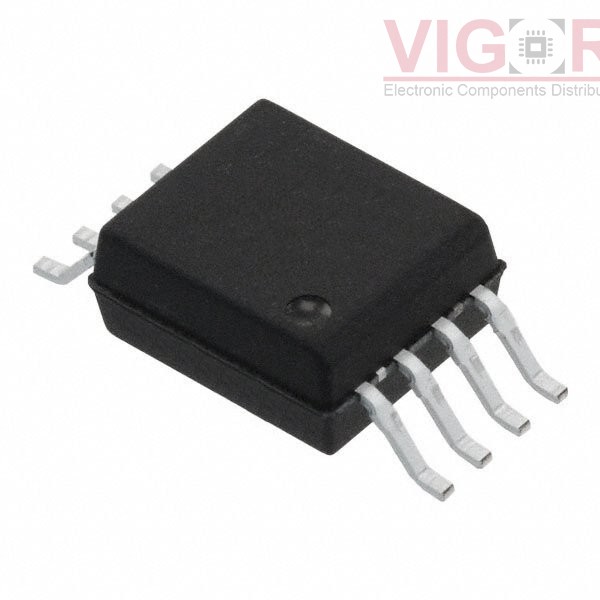

ACPL-K54L-500E

Image is for reference,
please contact us to get the real picture

Part No :: ACPL-K54L-500E

Manufacturer: Broadcom

Description: OPTOISOLATOR 5KV 2CH TRANS 8-SO

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: ACPL-K54L-500E PDF

Availability: 1235 pieces

Unit Price: ~~$4.95000~~

Current price of ACPL-K54L-500E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACPL-K54L-500E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	2
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	93% @ 3mA
Current Transfer Ratio (Max):	200% @ 3mA
Turn On / Turn Off Time (Typ):	200ns, 380ns
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	24V
Current - Output / Channel:	8mA
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	20 mA
Vce Saturation (Max):	-
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.268", 6.81mm Width)
Supplier Device Package:	8-SO Stretched
