8302401FC

8302401FC

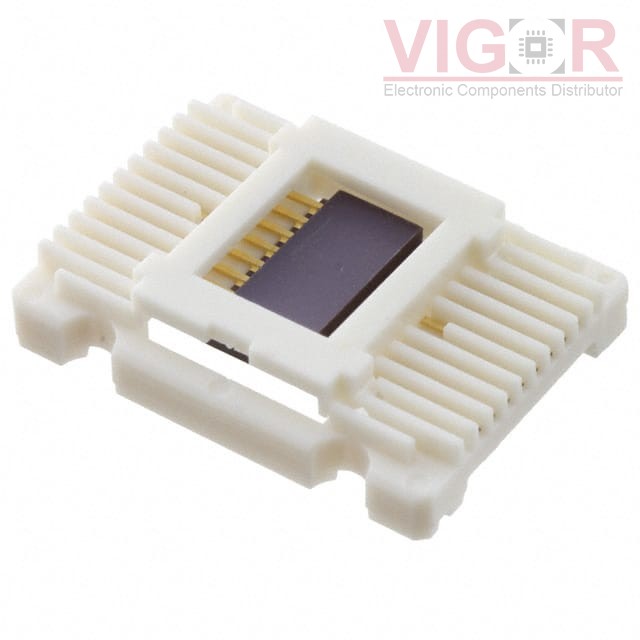

Image is for reference,
please contact us to get the real picture

Part No :

8302401FC

Manufacturer
Broadcom
Description
OPTOISO 1.5KV 4CH DARL 16FLATPAK
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
8302401FC PDF
Availability
0 pieces
Unit Price
$139.59000

Current price of 8302401FC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

8302401FC Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:4
Voltage - Isolation:1500VDC
Current Transfer Ratio (Min):200% @ 5mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):2µs, 8µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):20V
Current - Output / Channel:40mA
Voltage - Forward (Vf) (Typ):1.4V
Current - DC Forward (If) (Max):10 mA
Vce Saturation (Max):110mV
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-Flatpack
Supplier Device Package:16-Flatpack
