NTE3092

NTE3092

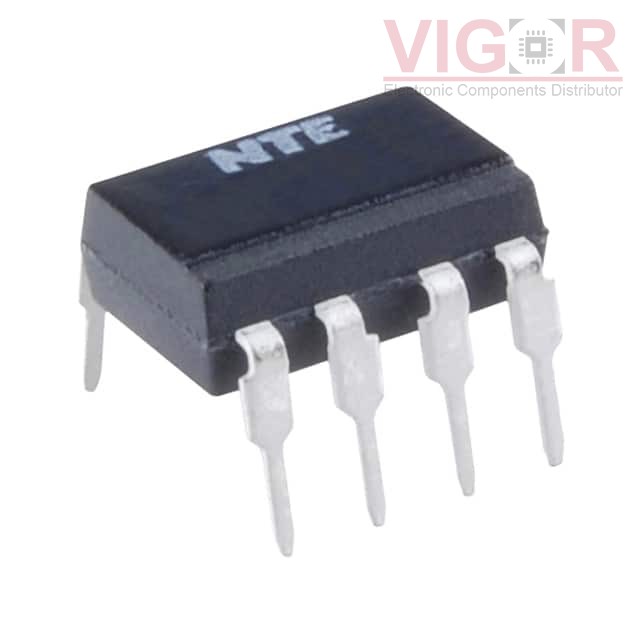

Image is for reference,
please contact us to get the real picture

Part No :

NTE3092

Manufacturer
NTE Electronics, Inc.
Description
OPTOCOUPLER/TRANSISTOR
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
NTE3092 PDF
Availability
41 pieces
Unit Price
$4.92000

Current price of NTE3092 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE3092 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Number of Channels:1
Voltage - Isolation:-
Current Transfer Ratio (Min):19% @ 16mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):500ns, 200ns
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):15V
Current - Output / Channel:8mA
Voltage - Forward (Vf) (Typ):1.65V
Current - DC Forward (If) (Max):25 mA
Vce Saturation (Max):-
Operating Temperature:-55°C ~ 100°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
