RV1S2285ACCSP-10YV#SC0

RV1S2285ACCSP-10YV#SC0

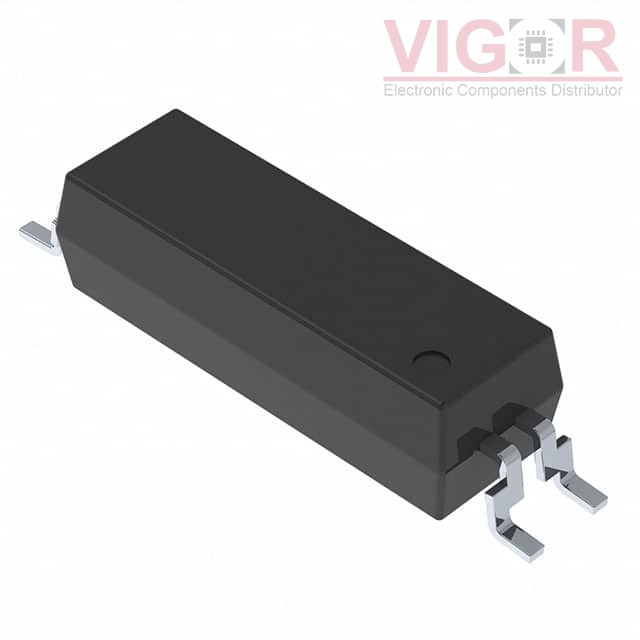

Image is for reference,
please contact us to get the real picture

Part No :

RV1S2285ACCSP-10YV#SC0

Manufacturer
Renesas Electronics America
Description
OPTO COUPLER IN 4PIN SSOP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
RV1S2285ACCSP-10YV#SC0 PDF
Availability
30 pieces
Unit Price
$1.68000

Current price of RV1S2285ACCSP-10YV#SC0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RV1S2285ACCSP-10YV#SC0 Specifications
Type Description
Series:-
Package:Strip
Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):50% @ 5mA
Current Transfer Ratio (Max):400% @ 5mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 5µs
Input Type:AC, DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:30mA
Voltage - Forward (Vf) (Typ):1.15V
Current - DC Forward (If) (Max):30 mA
Vce Saturation (Max):300mV
Operating Temperature:-40°C ~ 115°C
Mounting Type:Surface Mount
Package / Case:4-SOP (0.295", 7.50mm Width)
Supplier Device Package:4-LSSOP
