HCPL3700M

HCPL3700M

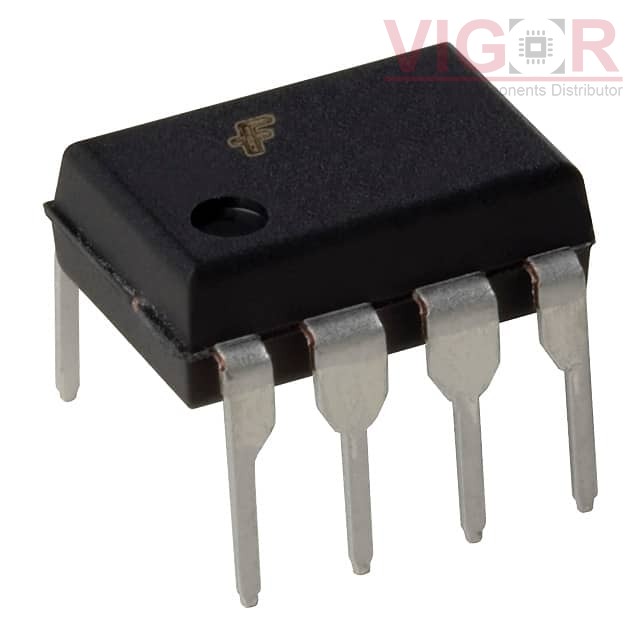

Image is for reference,
please contact us to get the real picture

Part No :

HCPL3700M

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
OPTOISO 5KV DARLINGTON 8-DIP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
HCPL3700M PDF
Availability
17 pieces
Unit Price
$5.59000

Current price of HCPL3700M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL3700M Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):-
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):6µs, 25µs
Rise / Fall Time (Typ):45µs, 0.5µs
Input Type:AC, DC
Output Type:Darlington
Voltage - Output (Max):20V
Current - Output / Channel:30mA
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Vce Saturation (Max):-
Operating Temperature:-40°C ~ 85°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
