TLX9905(TPL,F

TLX9905(TPL,F

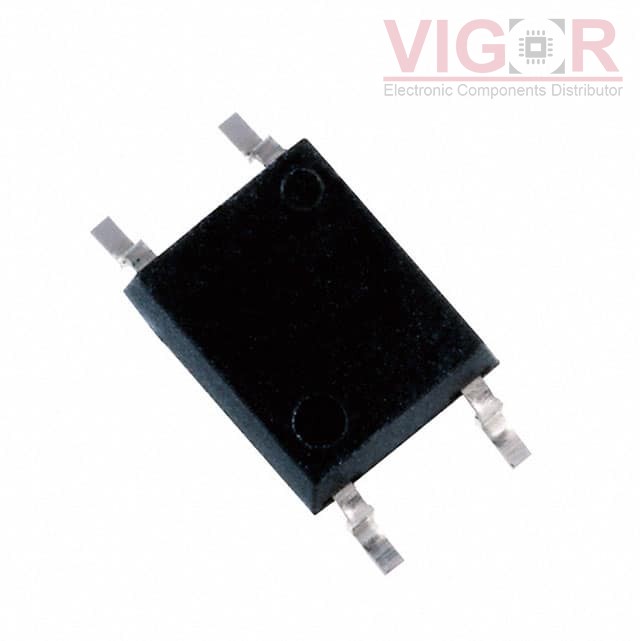

Image is for reference,
please contact us to get the real picture

Part No :

TLX9905(TPL,F

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
PV COUPLER; 4-PIN SO6; AECQ; ROH
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Aug 08 - Aug 12 2025
DataSheet
TLX9905(TPL,F PDF
Availability
549 pieces
Unit Price
$3.37000

Current price of TLX9905(TPL,F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLX9905(TPL,F Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):-
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):300µs, 1ms
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Photovoltaic
Voltage - Output (Max):7V
Current - Output / Channel:-
Voltage - Forward (Vf) (Typ):1.65V
Current - DC Forward (If) (Max):30 mA
Vce Saturation (Max):-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package:6-SO, 4 Lead
