HCPL2730V

HCPL2730V

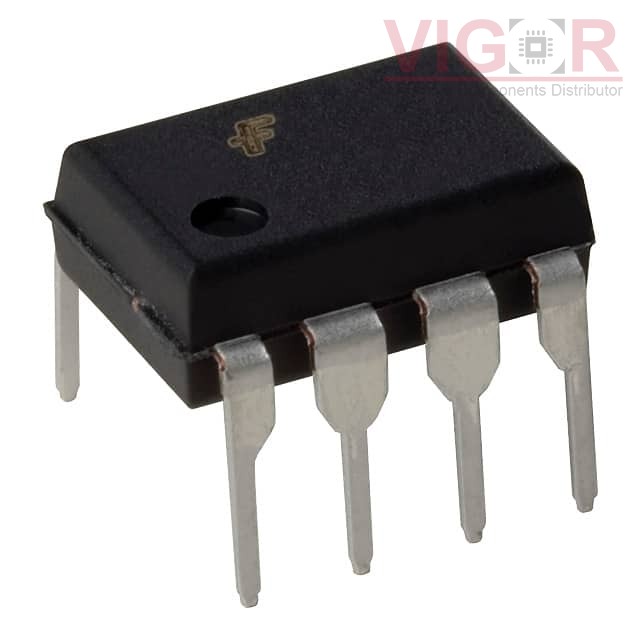

Image is for reference,
please contact us to get the real picture

Part No :

HCPL2730V

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
OPTOISO 2.5KV 2CH DARL 8DIP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
HCPL2730V PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of HCPL2730V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL2730V Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Number of Channels:2
Voltage - Isolation:2500Vrms
Current Transfer Ratio (Min):300% @ 1.6mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):300ns, 5µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):7V
Current - Output / Channel:60mA
Voltage - Forward (Vf) (Typ):1.3V
Current - DC Forward (If) (Max):20 mA
Vce Saturation (Max):-
Operating Temperature:-40°C ~ 85°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
