PC852XNNSZ1H

PC852XNNSZ1H

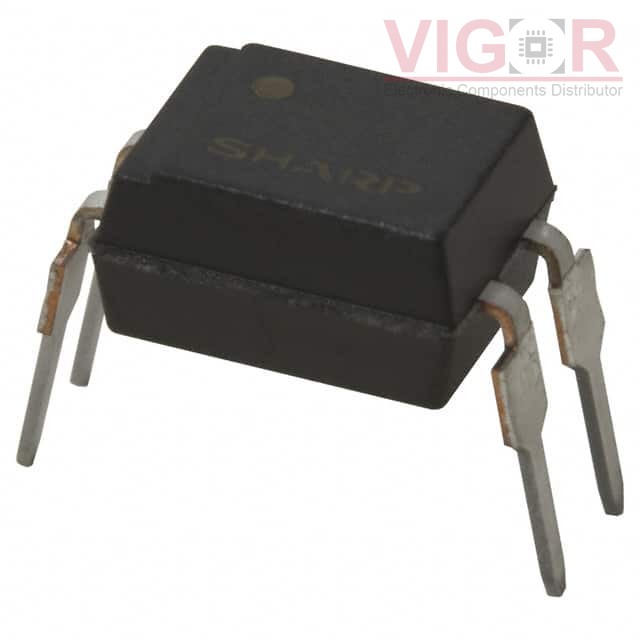

Image is for reference,
please contact us to get the real picture

Part No :

PC852XNNSZ1H

Manufacturer
Socle Technology Corporation
Description
OPTOISOLATOR 5KV DARL DIP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
PC852XNNSZ1H PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PC852XNNSZ1H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC852XNNSZ1H Specifications
Type Description
Series:PC852X
Package:Tube
Part Status:Discontinued at Digi-Key
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):1000% @ 1mA
Current Transfer Ratio (Max):15000% @ 1mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):100µs, 20µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):350V
Current - Output / Channel:150mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):1.2V
Operating Temperature:-30°C ~ 100°C
Mounting Type:Through Hole
Package / Case:4-DIP (0.300", 7.62mm)
Supplier Device Package:4-DIP
