HCPL2503

HCPL2503

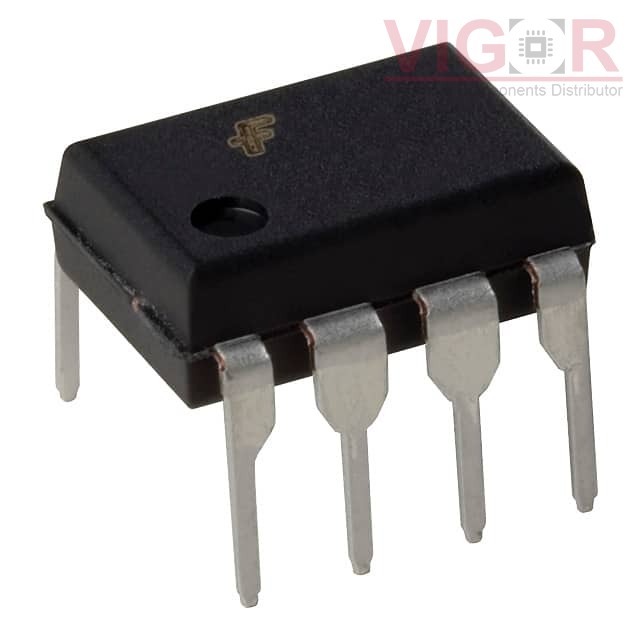

Image is for reference,
please contact us to get the real picture

Part No :

HCPL2503

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
OPTOISO 2.5KV TRANS W/BASE 8DIP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
HCPL2503 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of HCPL2503 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL2503 Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:2500Vrms
Current Transfer Ratio (Min):12% @ 16mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):450ns, 300ns
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):20V
Current - Output / Channel:8mA
Voltage - Forward (Vf) (Typ):1.45V
Current - DC Forward (If) (Max):25 mA
Vce Saturation (Max):-
Operating Temperature:-55°C ~ 100°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
