PC817XNNSZ1B

PC817XNNSZ1B

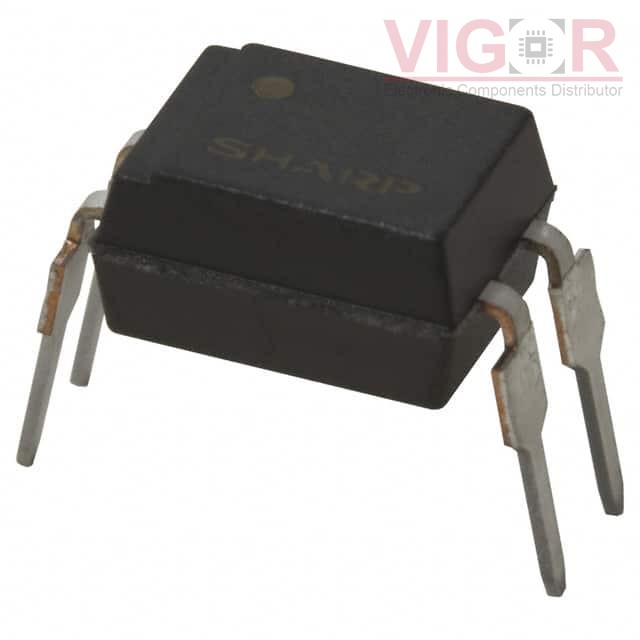

Image is for reference,
please contact us to get the real picture

Part No :

PC817XNNSZ1B

Manufacturer
Socle Technology Corporation
Description
OPTOISOLATOR 5KV TRANSISTOR DIP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
PC817XNNSZ1B PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PC817XNNSZ1B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC817XNNSZ1B Specifications
Type Description
Series:-
Package:Tube
Part Status:Discontinued at Digi-Key
Number of Channels:1
Voltage - Isolation:-
Current Transfer Ratio (Min):-
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 3µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):200mV
Operating Temperature:-30°C ~ 100°C
Mounting Type:Through Hole
Package / Case:4-DIP (0.300", 7.62mm)
Supplier Device Package:4-DIP
