PS2915-1-F3-A

PS2915-1-F3-A

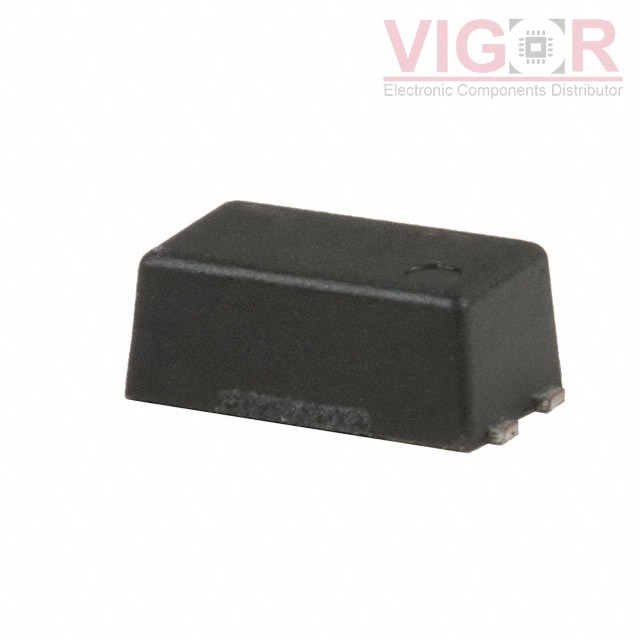

Image is for reference,
please contact us to get the real picture

Part No :

PS2915-1-F3-A

Manufacturer
CEL (California Eastern Laboratories)
Description
OPTOISOLATOR 2.5KV TRANS 4SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
PS2915-1-F3-A PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PS2915-1-F3-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PS2915-1-F3-A Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:2500Vrms
Current Transfer Ratio (Min):100% @ 1mA
Current Transfer Ratio (Max):400% @ 1mA
Turn On / Turn Off Time (Typ):40µs, 120µs
Rise / Fall Time (Typ):5µs, 10µs
Input Type:AC, DC
Output Type:Transistor
Voltage - Output (Max):40V
Current - Output / Channel:40mA
Voltage - Forward (Vf) (Typ):1.1V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Flat Leads
Supplier Device Package:4-Mini-Flat
