OPIA402BTR

OPIA402BTR

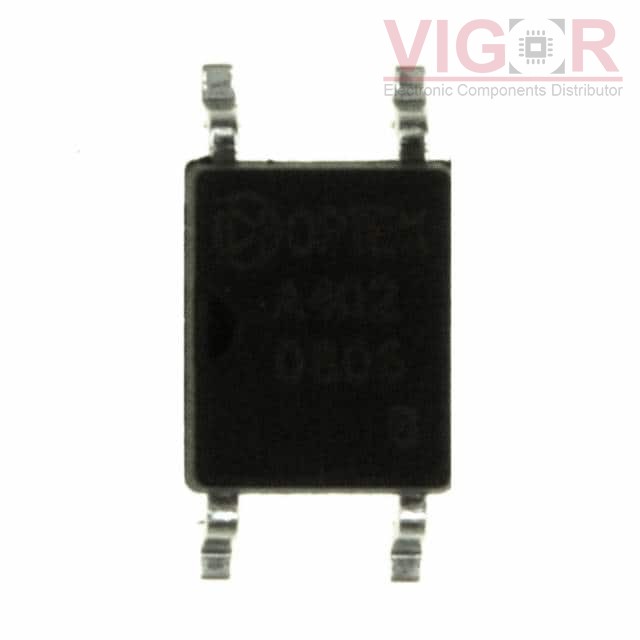

Image is for reference,
please contact us to get the real picture

Part No :

OPIA402BTR

Manufacturer
TT Electronics / Optek Technology
Description
OPTOISOLATOR 3.75KV TRANS 4-SOP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2025
DataSheet
OPIA402BTR PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of OPIA402BTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

OPIA402BTR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):20% @ 1mA
Current Transfer Ratio (Max):400% @ 1mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 3µs
Input Type:AC, DC
Output Type:Transistor
Voltage - Output (Max):60V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):300mV
Operating Temperature:-30°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SOP (2.54mm)
