SFH601-3X019

SFH601-3X019

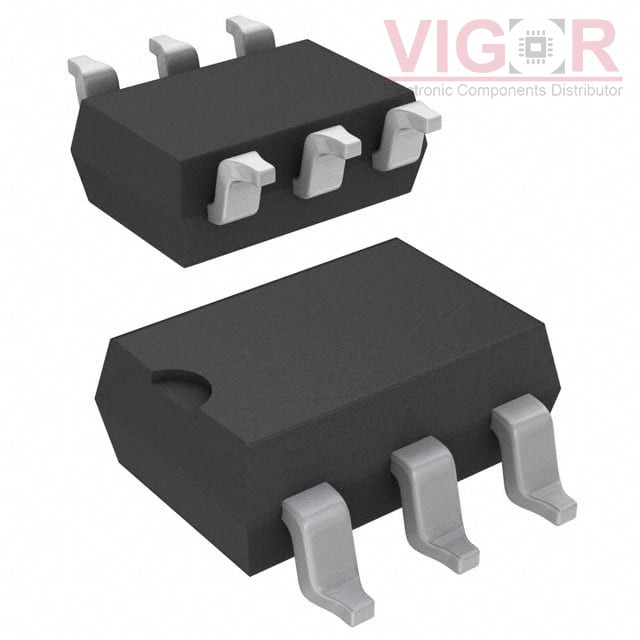

Image is for reference,
please contact us to get the real picture

Part No :

SFH601-3X019

Manufacturer
Vishay / Semiconductor - Opto Division
Description
OPTOISO 5.3KV TRANS W/BASE 6SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
SFH601-3X019 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of SFH601-3X019 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SFH601-3X019 Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):100% @ 10mA
Current Transfer Ratio (Max):200% @ 10mA
Turn On / Turn Off Time (Typ):3µs, 2.3µs
Rise / Fall Time (Typ):2µs, 2µs
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):100V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.25V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:6-SMD, Gull Wing
Supplier Device Package:6-SMD
