MCT5211

MCT5211

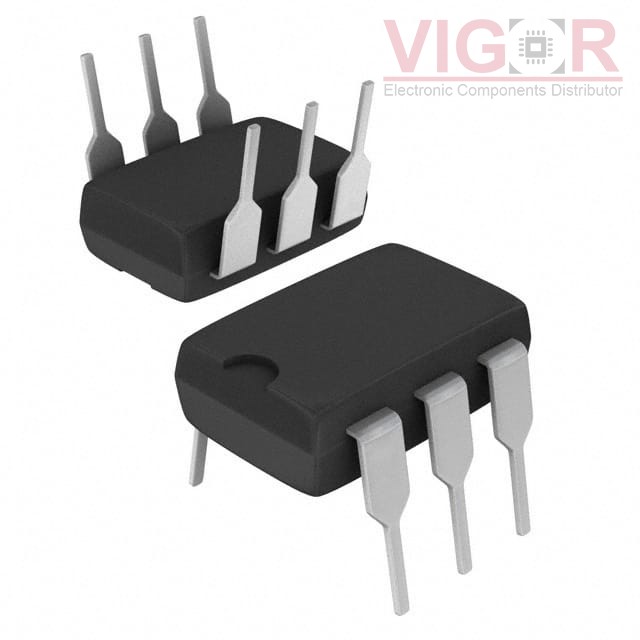

Image is for reference,
please contact us to get the real picture

Part No :

MCT5211

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
OPTOISO 5.3KV TRANS W/BASE 6DIP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
MCT5211 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of MCT5211 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MCT5211 Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:5300Vrms
Current Transfer Ratio (Min):150% @ 1.6mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):14µs, 2.5µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):30V
Current - Output / Channel:150mA
Voltage - Forward (Vf) (Typ):1.25V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Through Hole
Package / Case:6-DIP (0.300", 7.62mm)
Supplier Device Package:6-DIP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TLP559(IGM,F)

TLP559(IGM,F)

OPTOISOLATOR 2.5KV TRANS 8-DIP
HOT HCPL0452R2V

HCPL0452R2V

OPTOCOUPLER SGL TRANS OUT 8-SOIC

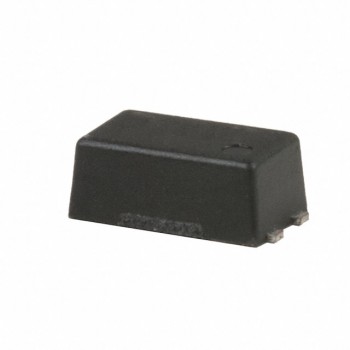

HOT PS2913-1-V-F3-K-A
