HMHAA280R1

HMHAA280R1

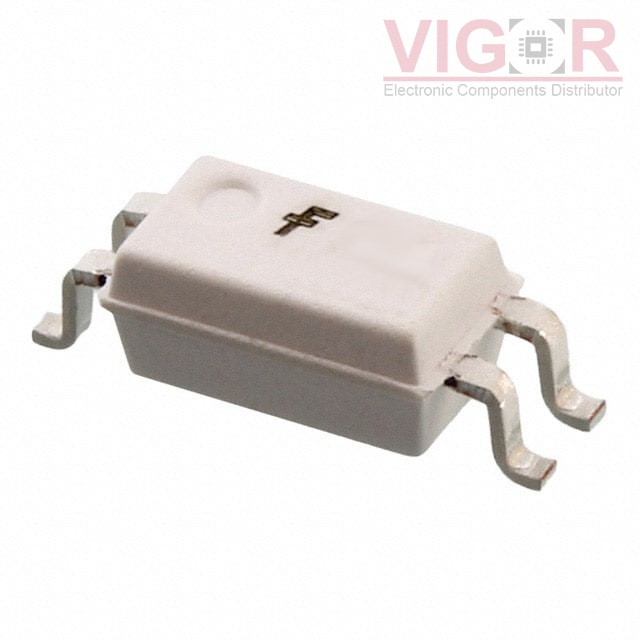

Image is for reference,
please contact us to get the real picture

Part No :

HMHAA280R1

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
OPTOISO 3.75KV TRANSISTOR 4SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
HMHAA280R1 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of HMHAA280R1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HMHAA280R1 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):50% @ 5mA
Current Transfer Ratio (Max):600% @ 5mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):3µs, 3µs
Input Type:AC, DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.4V (Max)
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SOIC (0.173", 4.40mm Width)
Supplier Device Package:4-Mini-Flat
