APT1212WAW

APT1212WAW

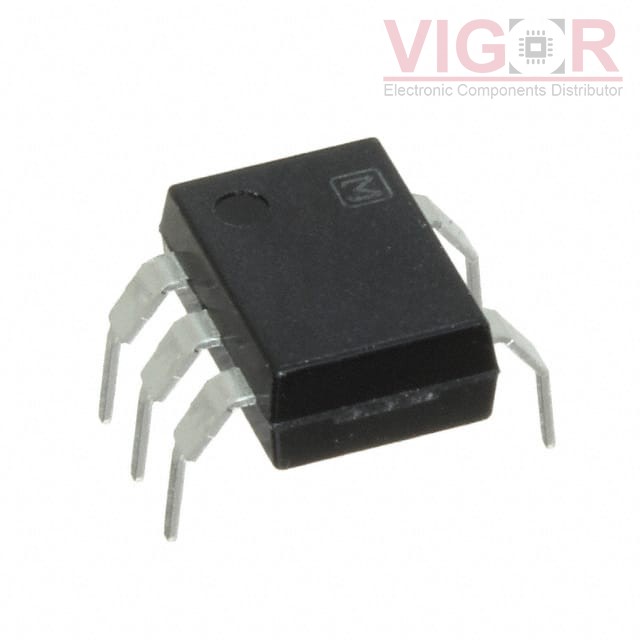

Image is for reference,
please contact us to get the real picture

Part No :

APT1212WAW

Manufacturer
Panasonic
Description
OPTOISOLATOR 5KV TRIAC 6DIP
Catalog
Optoisolators - Triac, SCR Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
APT1212WAW PDF
Availability
0 pieces
Unit Price
$0.87450

Current price of APT1212WAW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

APT1212WAW Specifications
Type Description
Series:APT
Package:Tape & Reel (TR)
Part Status:Active
Output Type:Triac
Zero Crossing Circuit:Yes
Number of Channels:1
Voltage - Isolation:5000Vrms
Voltage - Off State:600 V
Static dV/dt (Min):500V/µs
Current - LED Trigger (Ift) (Max):10mA
Current - On State (It (RMS)) (Max):100 mA
Current - Hold (Ih):3.5mA
Turn On Time:100µs (Max)
Voltage - Forward (Vf) (Typ):1.21V
Current - DC Forward (If) (Max):50 mA
Operating Temperature:-40°C ~ 100°C
Mounting Type:Through Hole
Package / Case:6-DIP (0.400", 10.16mm), 5 Leads
Supplier Device Package:6-DIP
Approval Agency:cUR, VDE
