PC3SD11NTZBH

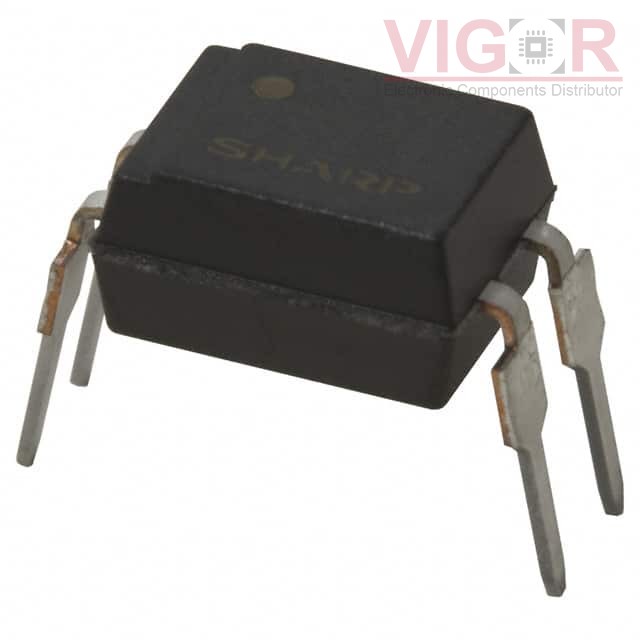

Image is for reference,
please contact us to get the real picture

Part No :: PC3SD11NTZBH

Manufacturer: Socle Technology Corporation

Description: OPTOISOLATOR 5KV TRIAC DIP

Catalog: Optoisolators - Triac, SCR Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 13 - Jul 17 2025

DataSheet: PC3SD11NTZBH PDF

Availability: 0 pieces

Unit Price: ~~$0.72713~~

Current price of PC3SD11NTZBH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC3SD11NTZBH Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Output Type:	Triac
Zero Crossing Circuit:	No
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Voltage - Off State:	600 V
Static dV/dt (Min):	1kV/µs
Current - LED Trigger (Ift) (Max):	7mA
Current - On State (It (RMS)) (Max):	100 mA
Current - Hold (Ih):	3.5mA
Turn On Time:	100µs (Max)
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Operating Temperature:	-30°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	4-DIP (0.300", 7.62mm)
Supplier Device Package:	4-DIP
Approval Agency:	CSA, UR

Please confirm the specifications of the products when ordering.
