TLP3042(TP1,S,C,F)

TLP3042(TP1,S,C,F)

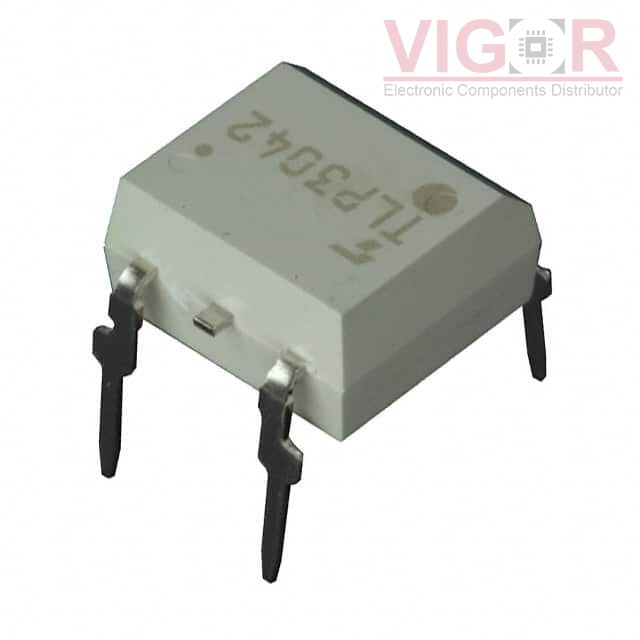

Image is for reference,
please contact us to get the real picture

Part No :

TLP3042(TP1,S,C,F)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
X36 PB-F PHOTOCOUPLER SMD T&R JA
Catalog
Optoisolators - Triac, SCR Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
TLP3042(TP1,S,C,F) PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TLP3042(TP1,S,C,F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP3042(TP1,S,C,F) Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Output Type:Triac
Zero Crossing Circuit:Yes
Number of Channels:1
Voltage - Isolation:5000Vrms
Voltage - Off State:400 V
Static dV/dt (Min):200V/µs
Current - LED Trigger (Ift) (Max):10mA
Current - On State (It (RMS)) (Max):100 mA
Current - Hold (Ih):600µA (Typ)
Turn On Time:-
Voltage - Forward (Vf) (Typ):1.15V
Current - DC Forward (If) (Max):50 mA
Operating Temperature:-40°C ~ 100°C
Mounting Type:Through Hole
Package / Case:6-DIP (0.300", 7.62mm), 5 Leads
Supplier Device Package:6-DIP (Cut), 5 Lead
Approval Agency:BSI, SEMKO, UR
