PC3SF11YVZAH

PC3SF11YVZAH

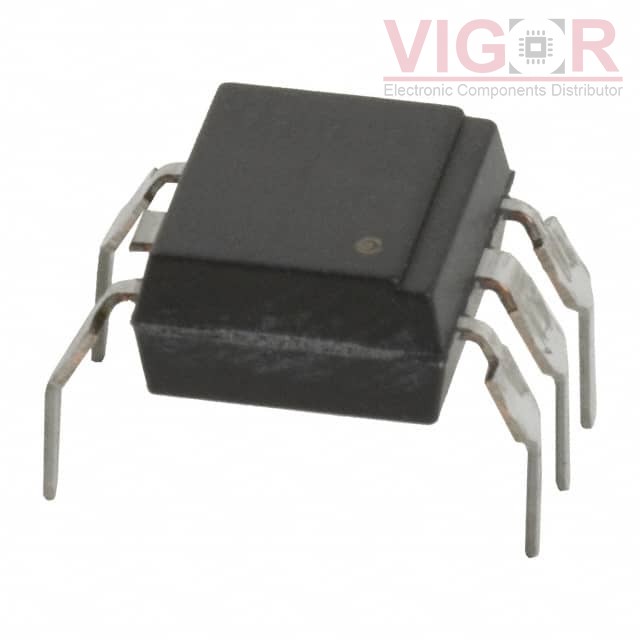

Image is for reference,
please contact us to get the real picture

Part No :

PC3SF11YVZAH

Manufacturer
Sharp Microelectronics
Description
OPTOISOLATOR 5KV TRIAC DIP
Catalog
Optoisolators - Triac, SCR Output
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
PC3SF11YVZAH PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PC3SF11YVZAH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC3SF11YVZAH Specifications
Type Description
Series:-
Package:Tube
Part Status:Discontinued at Digi-Key
Output Type:Triac
Zero Crossing Circuit:No
Number of Channels:1
Voltage - Isolation:5000Vrms
Voltage - Off State:600 V
Static dV/dt (Min):1kV/µs
Current - LED Trigger (Ift) (Max):10mA
Current - On State (It (RMS)) (Max):100 mA
Current - Hold (Ih):3.5mA
Turn On Time:100µs (Max)
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Operating Temperature:-30°C ~ 100°C
Mounting Type:Through Hole
Package / Case:6-DIP (0.400", 10.16mm), 5 Leads
Supplier Device Package:6-DIP
Approval Agency:BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE
