9478202002

9478202002

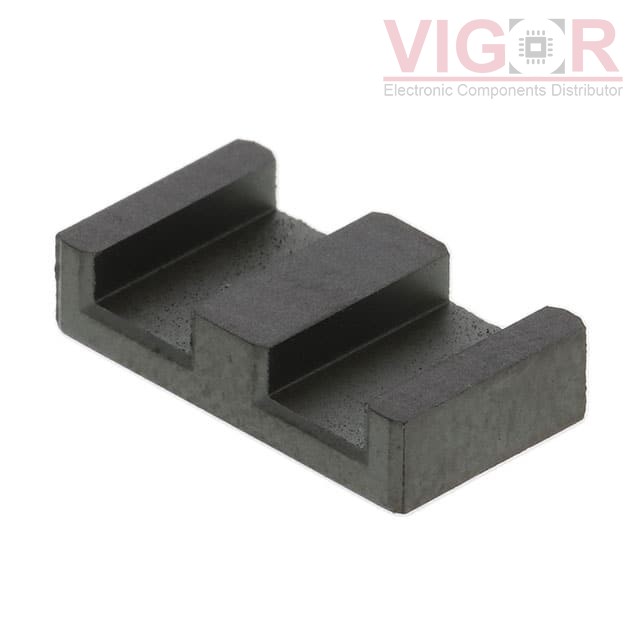

Image is for reference,
please contact us to get the real picture

Part No :

9478202002

Manufacturer
Fair-Rite Products Corp.
Description
78 PLANAR E CORE SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
9478202002 PDF
Availability
2174 pieces
Unit Price
$0.66000

Current price of 9478202002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

9478202002 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Core Type:E
Supplier Device Package:-
Material:78
Diameter:-
Inductance Factor (Al):-
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):2300
Core Factor (ΣI/A) mm-1:60
Effective Length (le) mm:24.3
Effective Area (Ae) mm²:39.5
Minimum Core Cross Section (Amin) mm²:39
Effective Magnetic Volume (Ve) mm³:960
Finish:Uncoated
Height:-
Length:-
Width:10.01mm
