HF60T22X10X14

HF60T22X10X14

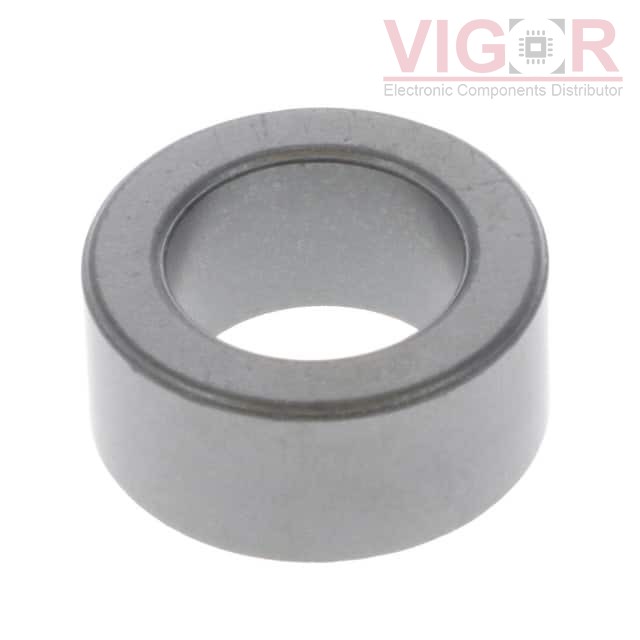

Image is for reference,
please contact us to get the real picture

Part No :

HF60T22X10X14

Manufacturer
TDK Corporation
Description
TOROIDAL CORE FOR EMI/RFI FILTER
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
HF60T22X10X14 PDF
Availability
564 pieces
Unit Price
$1.86000

Current price of HF60T22X10X14 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HF60T22X10X14 Specifications
Type Description
Series:T
Package:Tray
Part Status:Active
Core Type:Toroid
Supplier Device Package:-
Material:-
Diameter:0.866" (22.00mm)
Inductance Factor (Al):-
Tolerance:-
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):1600
Core Factor (ΣI/A) mm-1:-
Effective Length (le) mm:-
Effective Area (Ae) mm²:-
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:-
Finish:Epoxy
Height:0.394" (10.00mm)
Length:-
Width:-
