B65877B0000R097

B65877B0000R097

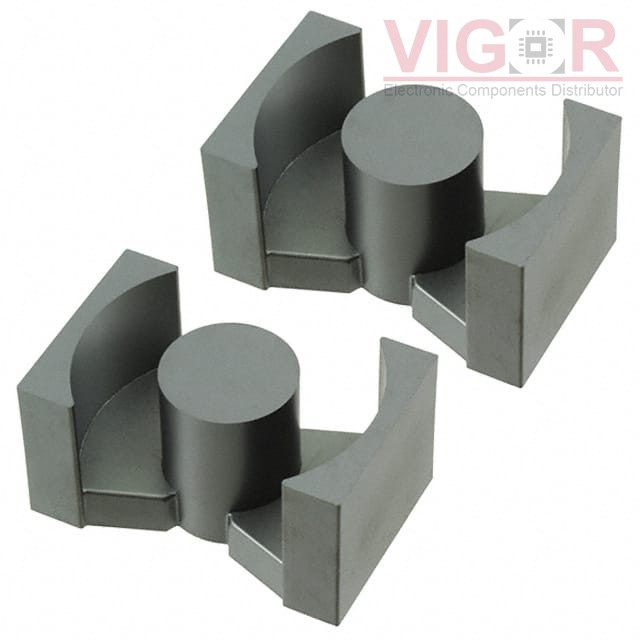

Image is for reference,
please contact us to get the real picture

Part No :

B65877B0000R097

Manufacturer
TDK EPCOS
Description
FERRITE CORE PQ 5.15UH N97 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
B65877B0000R097 PDF
Availability
390 pieces
Unit Price
$4.19000

Current price of B65877B0000R097 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65877B0000R097 Specifications
Type Description
Series:B65877B
Package:Box
Part Status:Active
Core Type:PQ
Supplier Device Package:PQ 26 x 20
Material:N97
Diameter:-
Inductance Factor (Al):5.15 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):1480
Initial Permeability (µi):2300
Core Factor (ΣI/A) mm-1:0.363
Effective Length (le) mm:44.4
Effective Area (Ae) mm²:122.3
Minimum Core Cross Section (Amin) mm²:108.8
Effective Magnetic Volume (Ve) mm³:5435
Finish:Uncoated
Height:10.08mm
Length:26.50mm
Width:19.00mm
