PC95EIR14/4.5/9-Z

PC95EIR14/4.5/9-Z

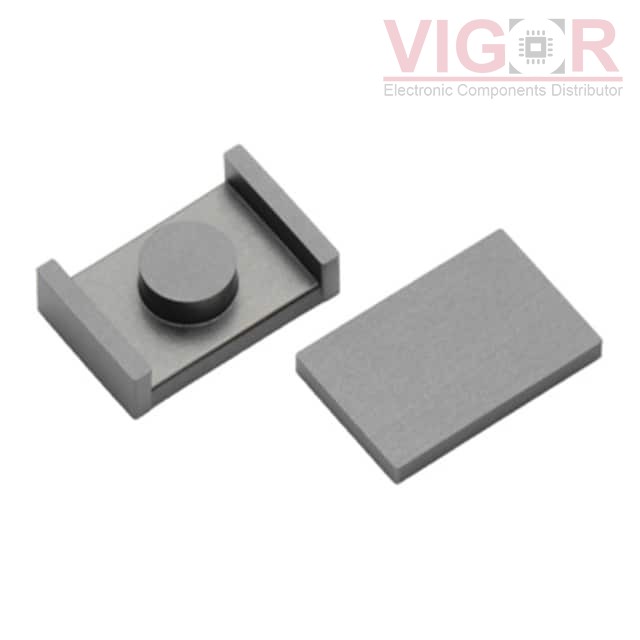

Image is for reference,
please contact us to get the real picture

Part No :

PC95EIR14/4.5/9-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE EIR 2.8UH 1SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
PC95EIR14/4.5/9-Z PDF
Availability
301 pieces
Unit Price
$1.62000

Current price of PC95EIR14/4.5/9-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95EIR14/4.5/9-Z Specifications
Type Description
Series:Planar
Package:Tray
Part Status:Active
Core Type:HER, PLT
Supplier Device Package:EIR 14 x 4.5 x 9
Material:PC95
Diameter:-
Inductance Factor (Al):2.8 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.68
Effective Length (le) mm:22.7
Effective Area (Ae) mm²:15.4
Minimum Core Cross Section (Amin) mm²:21.2
Effective Magnetic Volume (Ve) mm³:349
Finish:Uncoated
Height:4.50mm
Length:13.85mm
Width:9.00mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
