PC95PQ32/20Z-12

PC95PQ32/20Z-12

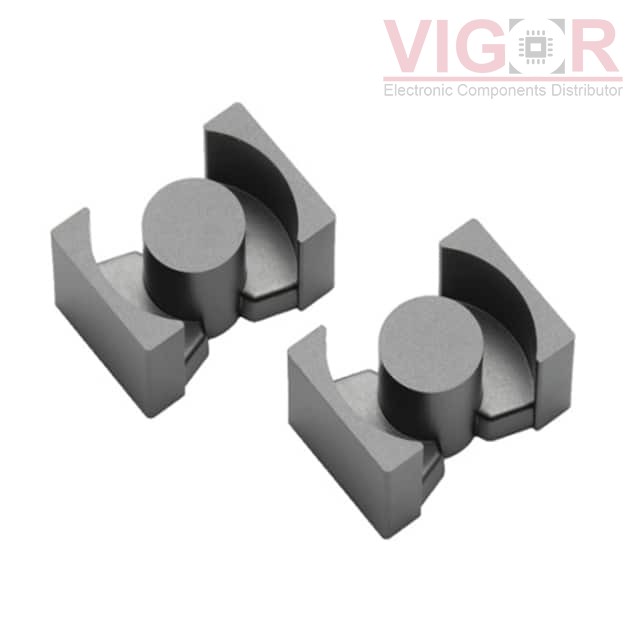

Image is for reference,
please contact us to get the real picture

Part No :

PC95PQ32/20Z-12

Manufacturer
TDK Corporation
Description
FERRITE CORE PQ 9.12UH 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
PC95PQ32/20Z-12 PDF
Availability
5 pieces
Unit Price
$10.75000

Current price of PC95PQ32/20Z-12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95PQ32/20Z-12 Specifications
Type Description
Series:PQ
Package:Tray
Part Status:Active
Core Type:PQ
Supplier Device Package:PQ 32 x 20
Material:PC95
Diameter:-
Inductance Factor (Al):9.12 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.33
Effective Length (le) mm:55.5
Effective Area (Ae) mm²:170
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:9420
Finish:Uncoated
Height:20.55mm
Length:32.00mm
Width:22.00mm
