B65815E0160A041

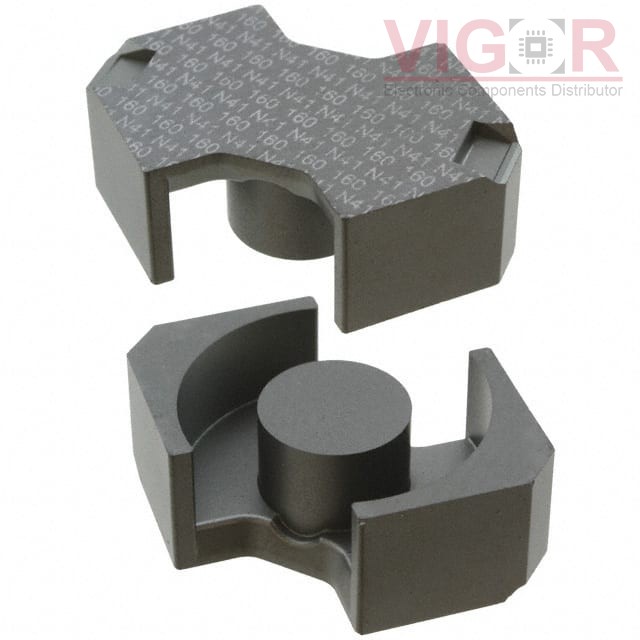

Image is for reference,
please contact us to get the real picture

Part No :: B65815E0160A041

Manufacturer: TDK EPCOS

Description: FERRITE CORE RM 160NH N41 2PCS

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: B65815E0160A041 PDF

Availability: 165 pieces

Unit Price: ~~$5.22000~~

Current price of B65815E0160A041 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65815E0160A041 Specifications

Type	Description
Series:	B65815
Package:	Box
Part Status:	Active
Core Type:	RM
Supplier Device Package:	RM 12
Material:	N41
Diameter:	-
Inductance Factor (Al):	160 nH
Tolerance:	±3%
Gap:	Gapped
Effective Permeability (µe):	50
Initial Permeability (µi):	2800
Core Factor (ΣI/A) mm^-1:	0.39
Effective Length (le) mm:	57
Effective Area (Ae) mm²:	146
Minimum Core Cross Section (Amin) mm²:	125
Effective Magnetic Volume (Ve) mm³:	8320
Finish:	Uncoated
Height:	12.30mm
Length:	37.60mm
Width:	16.10mm
