B66894G0000X187

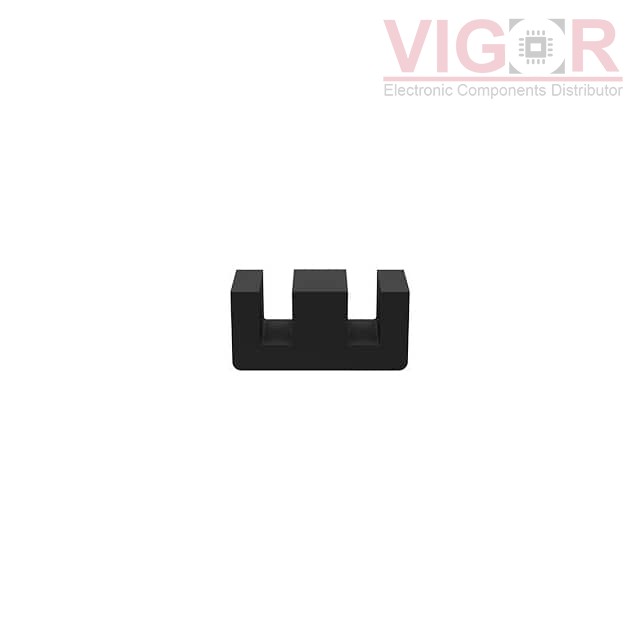

Image is for reference,
please contact us to get the real picture

Part No :: B66894G0000X187

Manufacturer: TDK EPCOS

Description: FERRITE CORES

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: B66894G0000X187 PDF

Availability: 0 pieces

Unit Price: ~~$19.45688~~

Current price of B66894G0000X187 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B66894G0000X187 Specifications

Type	Description
Series:	*
Package:	Bulk
Part Status:	Active
Core Type:	E
Supplier Device Package:	E 100/60/28
Material:	N87
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	1930
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.373
Effective Length (le) mm:	274
Effective Area (Ae) mm²:	735
Minimum Core Cross Section (Amin) mm²:	690
Effective Magnetic Volume (Ve) mm³:	201390
Finish:	Uncoated
Height:	59.40mm
Length:	100.30mm
Width:	27.50mm

Please confirm the specifications of the products when ordering.
